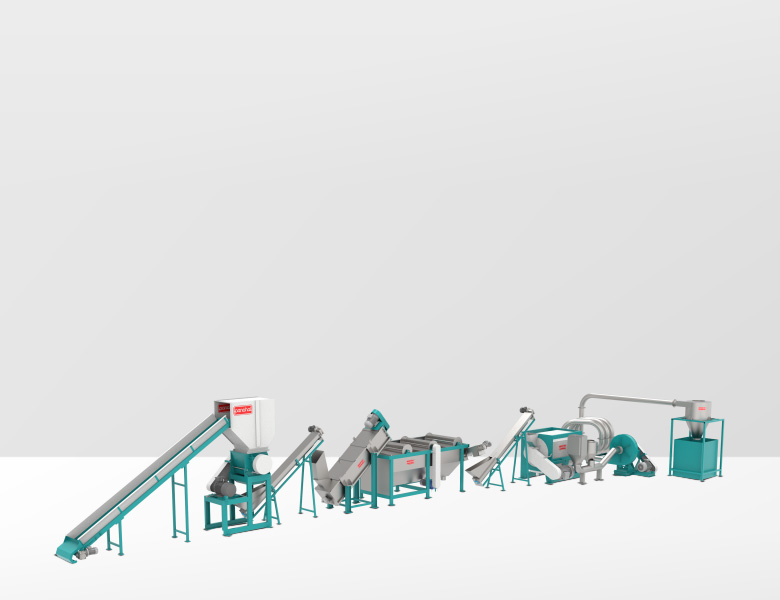

HDPE/PP Washing Line
The HDPE/PP Washing Line is designed for efficient recycling of bottles, crates, and drums. This professional system cleans rigid materials with contaminants and prepares high-quality recycled plastic for blow and injection molding applications.
HDPE/PP Washing Line
The HDPE/PP washing system is designed to clean rigid materials with contaminants. A grinding machine, specifically engineered for rigid materials, produces standardized particle sizes that are easy to wash and dry.
The friction washer removes dirt and sand through the centrifugal force generated by the high-speed rotation of its rotor. A sink-float tank separates materials based on density: lighter materials like LDPE, HDPE, and PP float, while denser materials like PVC, PET, and PC sink, each collected at different discharge points.
Horizontal dryers and thermal drying systems regulate the moisture content of the finished product, ensuring it is ideal for high-quality pelletizing with less than 5% moisture.
This comprehensive system represents the ideal solution for businesses looking to recycle their plastic waste and produce high-quality recycled plastic that can be used for blow and injection molding applications.
Applications
The HDPE/PP Washing Line from Panchal Plastic Machinery plays a critical role in the recycling of HDPE and PP bottles, crates, and drums. It is designed to handle rigid materials with some contamination and offers a solution for the complete preparation of materials used for blow and injection molding.
- HDPE bottle recycling
- PP crate washing and preparation
- Plastic drum cleaning
- Rigid container recycling
- Industrial plastic waste processing
- Post-consumer plastic recycling
- Preparation for blow molding
- Injection molding material preparation
This allows efficient washing, drying, and separation and assures that the materials that are recovered from this system are of high enough quality to be reintroduced in a variety of different industrial applications. These design features control particle size, ensure effective material separation, regulate moisture, and enhance effective operations, hence making the equipment the best choice for sustainable plastic recycling practices.
Key Features of Our HDPE/PP Washing Line
- Conveyor Belt: For easy material flow in the washing system
- Wet Crusher: Specifically designed for rigid material to achieve standard particle size
- Friction Washer: Utilizes centrifugal force for effective dirt and sand removal
- Sink Float Tank: Separates materials based on density differences
- Horizontal Dryer: Regulates moisture content to less than 5% in final product
- Thermal Dryer: Complements horizontal dryer for optimal moisture management
- High-capacity processing for industrial applications
- Energy-efficient operation with optimized water consumption
Technical Specifications
| CAPACITY (KG/HR) | INSTALLATION POWER (KW) | REQUIRED AREA (M³) | MANPOWER | ELECTRICITY CONSUMPTION (KW/H) | COMPRESSED AIR (M³/MIN) | WATER CONSUMPTION (M³/HR) |
|---|---|---|---|---|---|---|
| 500 | 200 | 500 | 8 | 280 | 0.5 | 0.75 |
| 1000 | 400 | 700 | 12 | 700 | 0.5 | 2.25 |
| 1500 | 600 | 900 | 18 | 1300 | 0.7 | 4.5 |
| 3000 | 900 | 1200 | 30 | 2300 | 1 | 9 |
| 6000 | 900 | 1200 | 30 | 2300 | 1 | 9 |
*Specifications may vary based on specific configuration and material type
