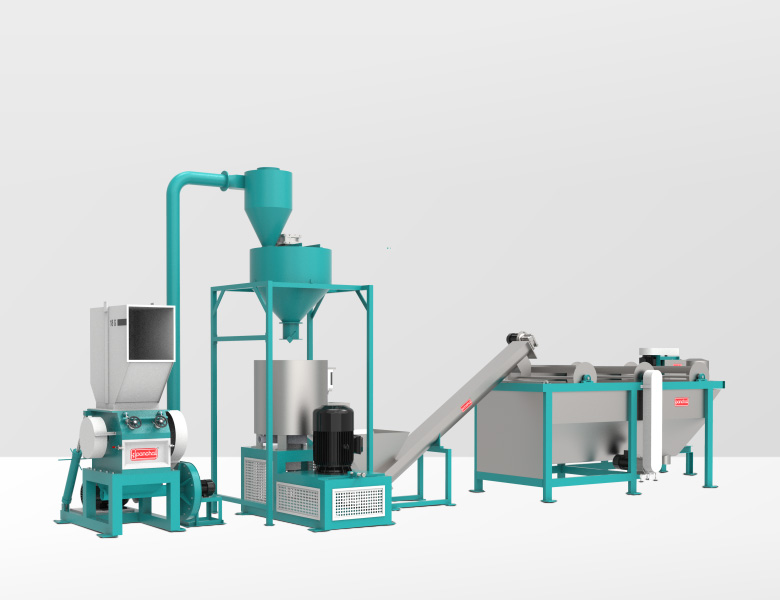

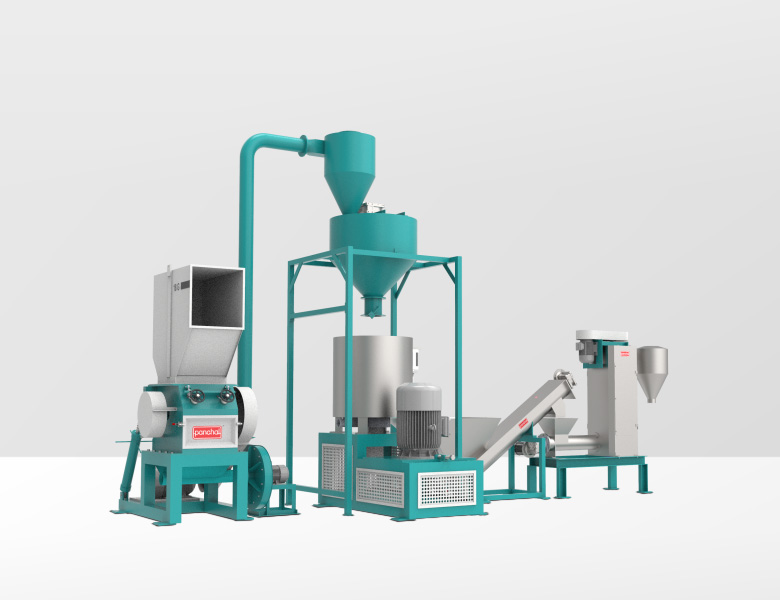

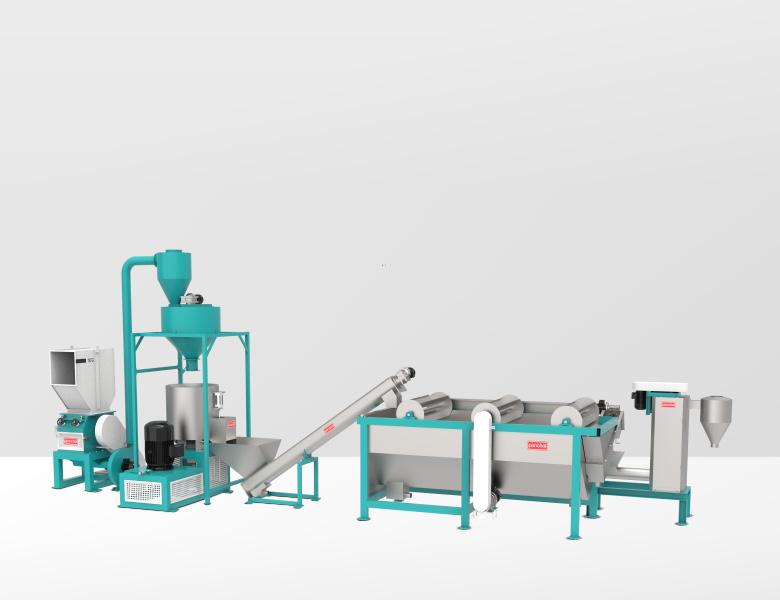

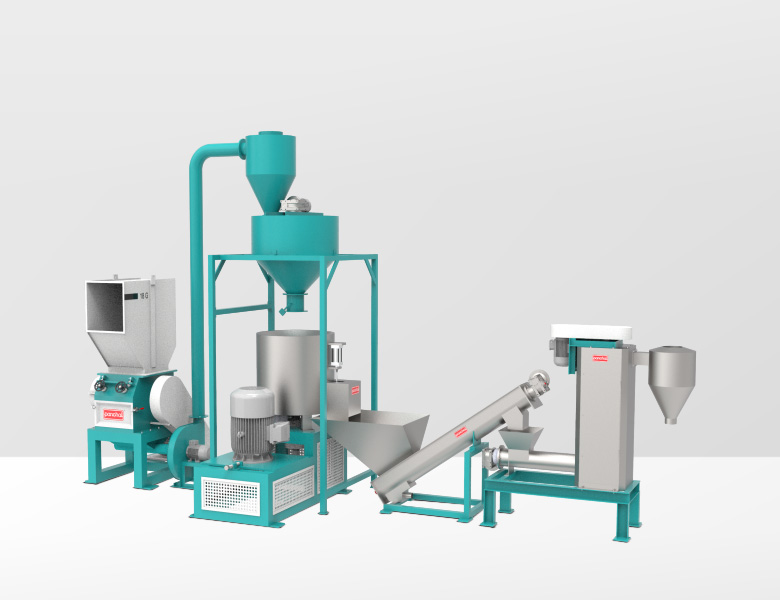

Mini Washing Line (ECO-LINE)
The Mini Washing Line (ECO-LINE) offers an economical solution for small entrepreneurs starting their plastic recycling business. It includes essential equipment for washing and recycling various plastics like PET, HDPE, LDPE, PP, PVC, and PS.
Mini Washing Line (ECO-LINE) Application
Panchal Plastic Machinery's manufacturing range, from the Mini Washing Line (ECO-LINE) to the Wet and Dry Grinder/Granulator, Turbo Washer, Sink-Float Tank, and Centrifugal Dryer, is an important constituent in the recycling industry.
The machines are particularly designed to work with HDPE, PP, PET, ABS, PC, and PS hard plastic wastes to provide tailor-made solutions to deal with efficient plastic creation and recycling.
From simple, intensive friction turbo-washing to hot-washing for specialised applications, each machine caters to subjecting the recycled materials to the most thorough cleansing and preparation.
Modular systems and adjustable washing times allow flexibility in operation, suiting all reasonable recycling needs while maintaining quality and efficiency in performance.
Key Features of Our Mini Washing Line (ECO-LINE)
- Quick and Low-Cost Startup: Designed for smaller businessmen requiring a low-cost and space-efficient solution
- Small footprint for speedy startup and operation
- Precise Grinding: Efficient recycling of hard plastic scrap into reusable products
- Deep Cleaning: High-speed rotation maximizes extraction of impurities
- Separation Efficiency: Uses buoyancy of water to separate different plastic types by density
- Efficient Drying: Centrifuge removes excess water from washed plastics
- Handles various plastics: PET, HDPE, LDPE, PP, PVC, PS, etc.
- Compact design ideal for small-scale operations
Advanced Technology
Cross Body Opening
Provides full access to the interior of the cutter house. Cleaning and maintenance with full visibility and accessibility, ensuring optimal operation and easy maintenance.

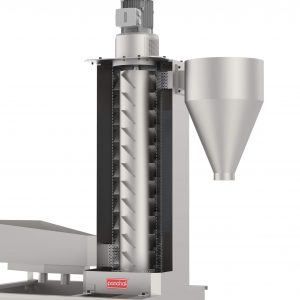

Centrifugal Technology
Drying Centrifuges are made of AISI304 stainless steel material, ensuring durability, corrosion resistance, and efficient water removal from plastic materials.
Technical Specifications
| MODEL | COMBINATION | PRODUCTION /OUTPUT KG/HR* |
|---|---|---|
| Eco-Mini-GWSD | Grinder-Turbo Washing-Sink/float Tank-Dryer | 300-400 |
| Eco-Mini-WSD | Turbo Washing-Sink/float Tank-Dryer | 300-400 |
| Eco-Mini-WD | Turbo Washing-Dryer | 250-350 |
| Eco-Medium-GWSD | Grinder-Turbo Washing-Sink/float Tank-Dryer | 600-800 |
| Eco-Medium-WSD | Turbo Washing-Sink/float Tank-Dryer | 600-800 |
| Eco-Medium-WD | Turbo Washing-Dryer | 500-700 |
| Eco-Maxi-GWSD | Grinder-Turbo Washing-Sink/float Tank-Dryer | 1200-1500 |
| Eco-Maxi-WSD | Turbo Washing-Sink/float Tank-Dryer | 1200-1500 |
| Eco-Maxi-WD | Turbo Washing-Dryer | 1000-1200 |
*Output may vary based on material type and conditions
