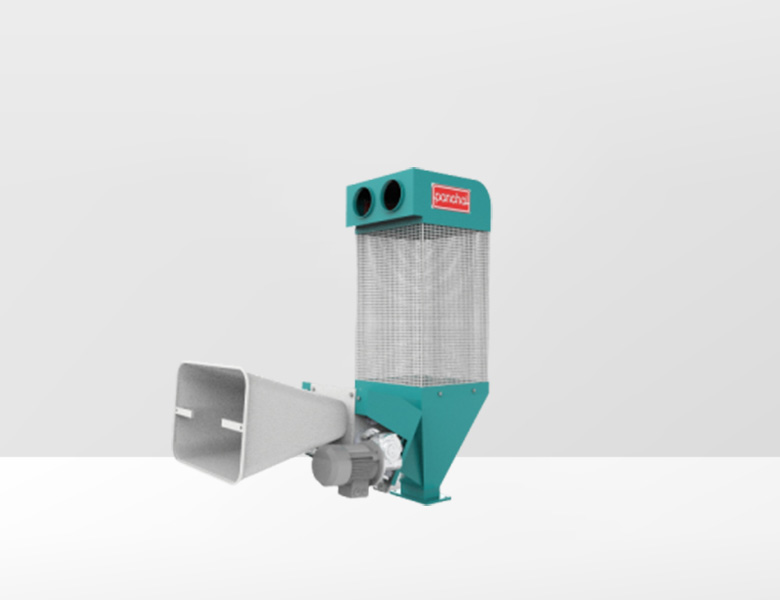

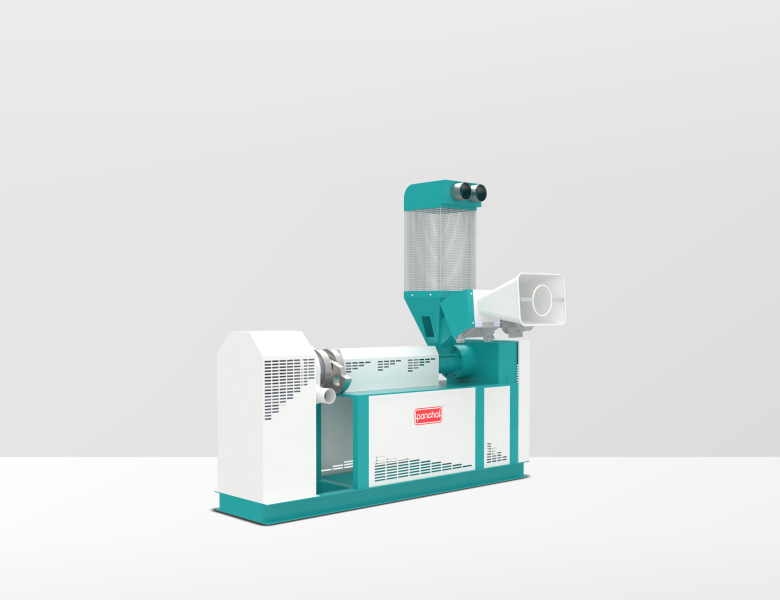

Edge Trim Recycling Plant

The Edge Trim Recycling Machine is engineered specifically for blown film plants, multilayer/mono-layer extrusion lines, and high-speed film production units that require continuous inline recycling of edge trim waste. This advanced edge trim recycling machine instantly collects, cuts, densifies, and feeds the trim back into the extrusion process, ensuring zero material wastage, consistent granulation, and uninterrupted production flow. Its compact, open-frame design allows easy access, low maintenance, and operator-friendly handling, while AC vector and direct-drive technology ensure low energy consumption and smooth performance.

The edge trim recycling machine supports LDPE, LLDPE, HDPE, and PP films, delivering uniform, high-quality granules suitable for reuse in the main film line. With plug-and-socket connections for quick servicing, non-obstructive operation, and an air pelletizing system that eliminates water-cooling issues, it provides a clean and cost-efficient solution for film manufacturers looking to recycle trim waste directly on the production floor. Built for durability, stability, and precision, this system helps reduce raw material costs, improve sustainability, and enhance overall plant productivity.

Download Catalogue Inquiry Now

Details of Edge Trim Recycling Plant

Features
  • Simple and Safe Operation: The particular machine eliminates the possibility of human error by operating in a way that is simple and safe while also meeting safety standards. It works with the minimum of dust and noise, which makes it a perfect choice in highly sensitive areas.
  • Closed Loop Systems: Provides closed loops, which maximise material processing efficiency and minimise waste.
  • Various Direct Feeding Methods: It is important to note that the bread varieties it produces use a range of direct feeding methods, including a flexible approach to material input.
  • Specialised Edge Trim Conversion: Equipped with a converting line for the manufacture of high-grade pellets from PE blown film edge trims. In addition, it can take cut-offs from the casting line, film roll scrapes, and reject rolls through the roll feeder.
  • Feeder Intake Zone Design: A customised intake feeder with high efficiency for feeding edge trims, rolls, and loose material is designed. It is useful in film production.
  • Short Length Over Diameter Screw Ratio: Utilised a screw ratio with a small diameter to length ratio, which ensured low degradation and good quality final products.
  • Minimum Valuable Floor Space Requirements: This lowers the company's expenses regarding floor space and thereby increases workplace efficiency.
Application
  • Specialization in gentle conveting of edge trims from PE blown film production into high quality pellets also following can be processed:
  • Edge trims from cast film production
  • Film roll scrap
  • Multilayer films (e.g. PE/ PA)
  • Slightly printed films

Description

The Edge Trim Recycling Machine is designed for inline processing of edge trims generated during blown film and extrusion operations. It incorporates a cutter–compactor unit that continuously chops, densifies, and conveys the trim material into the extruder for reprocessing. The system features AC vector and direct-drive technology to ensure stable torque, low noise, and reduced energy consumption. Its compact, open construction allows easy access for cleaning and maintenance, while plug-and-socket connections simplify routine service without requiring specialized technicians. An air pelletizing system is used instead of a water-cooled unit, providing faster cleaning, eliminating water-related contamination, and ensuring consistent pellet output. Suitable for LDPE, LLDPE, HDPE, and PP film trims, the machine supports uninterrupted 24/7 inline operation with minimal operator involvement.

Technology

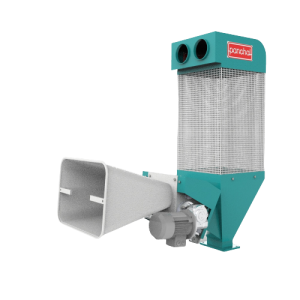

Film Trimmer
Roller Feeder

For optimal pellet efficiency, powerful in-feed rollers ensure consistent feeding of the material into the recycling system.

Technical Data

MODEL PPM-35ET PPM-50ET PPM-65ET PPM-75ET PPM-90ET
Screw Diameter (mm) 35 50 65 75 90
Main Motor (HP) 10 15 20 40 75
Die-Face Drive (HP) 1 1 2 2 3
Cooling Blower (HP) 2 2 2 3 3
Production (kg./Hr.) 5-10 15-20 25-50 60-100 100-150
