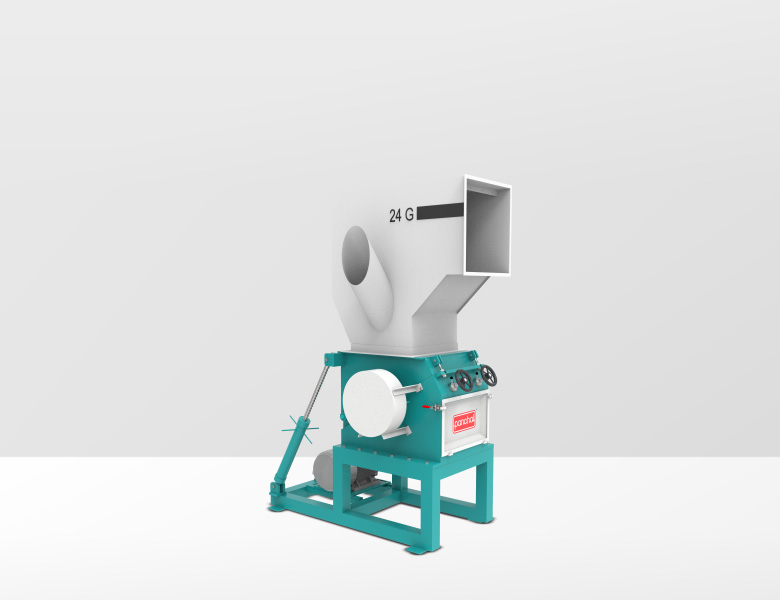

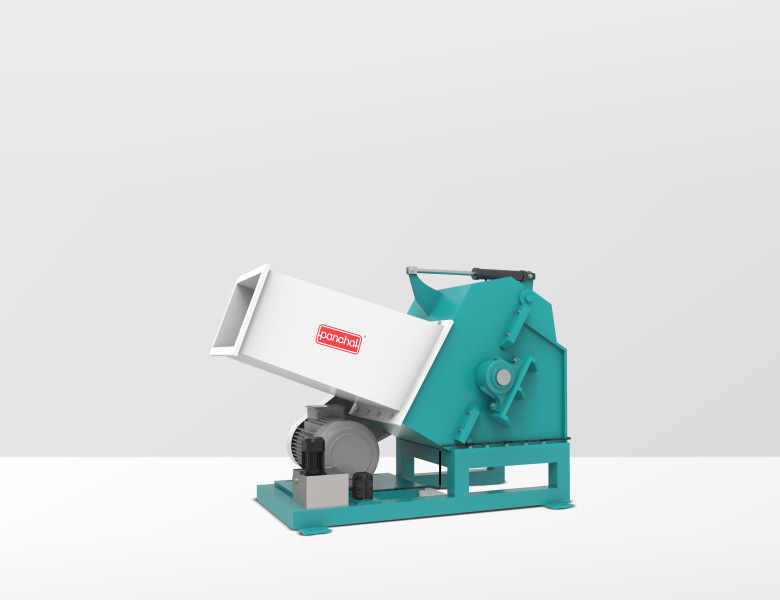

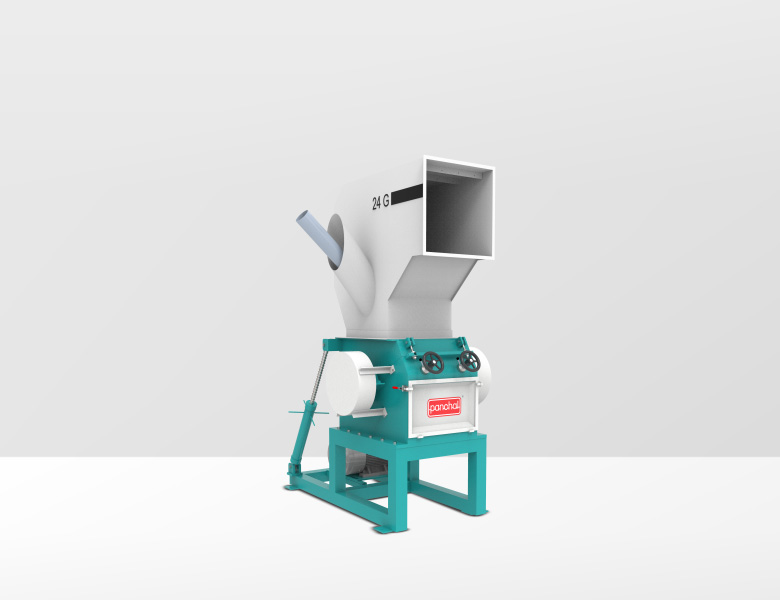

Pipe And Profile Grinder Series Machine

Grinder-PipeProfile Series01

The Pipe and Profile Grinder Series Machine by Panchal Plastic Machinery Pvt. Ltd. is a high-performance solution designed for efficient recycling of plastic pipes and profiles. As a trusted Pipe and Profile Grinder Series Machine Manufacturer, Panchal offers advanced systems that function as a reliable pipe granulator machine for processing various plastic pipe and profile materials. Our machines are engineered to work as an efficient plastic pipe grinder, capable of handling different pipe diameters and rigid plastic profiles with precision and consistency.

We offer two specialized feeding designs—side feeding and front tilt feeding—to suit different recycling requirements. The versatile range includes machines that operate as a powerful profile granulator machine, effectively grinding HDPE pipes, PVC pipes, and various plastic profiles. For smaller dimensions, the 18", 24", and 30" Series machines provide accurate and reliable grinding performance, while the heavy-duty 40" and 48" Series models are designed for larger pipes and profiles. These machines can also be equipped with customized in-feed hoppers to match specific processing needs.

In addition, the Panchal Shredder/Granulator system features advanced automatic feeding control, making it ideal for recycling long and large pipes. Acting as a high-capacity pipe granulator machine and plastic pipe grinder, it ensures smooth material flow and efficient size reduction. Built for durability, precision, and energy efficiency, this profile granulator machine helps recycling facilities streamline plastic waste processing while promoting sustainable and cost-effective operations.

Download Catalogue Inquiry Now

Details of Pipe and Profile Grinder Series

Features
  • Robust Construction: Built tough for enduring reliability, ensuring quality performance even with challenging materials.
  • Feeding Options: This machine can be either operated manually or via a robot, which in turn helps in providing flexibility to the feeding of the materials for grinding.
  • Feeding Flexibility: Operate manually or via robot, offering versatile material feeding options for grinding.
  • High Output Range: Adjustable from 20 to 1000 kg/hr, catering to diverse production needs with flexibility.
  • Versatile Models: model different models and give the option of using them all in processing applications that need different scales and types of equipment.
  • Efficient Cutting Mechanism: Utilizes staggered and double cross-cutting rotors, allowing continuous operation with pre-adjusted rotor and bed knives to prevent motor overload.
  • Versatile Recycling: Not restricted to cold melt granulation, these mills and granulators excel in hot melt granulation, enhancing versatility in recycling operations.
  • Advanced Material Handling: Equipped with heavy-duty bearings and a suction system including a flow-through fan and cyclone, ensuring reliable performance and effective waste management and recycling during operation.
Application

The pipe grinder is a machine made for the easy recycling of all kinds of plastic pipes and profiles. Be it HDPE, PVC, or PVS, our grinder can grind everything. We have a side feeding design and a front tilt feeding design available for the clients as per their convenience. Available in multipurpose and dedicated HDPE grinders, PVC grinders, and one for PVS grinder machines, our range is sure to offer the right solution for your needs. We have 18", 24", and 30"-Series machines for smaller pipes and profiles, while our 40"-Series machines have been made considering the larger ones. Our 40"-Series and 48"-Series machines can also be equipped with special pipe/profile in-feed hoppers. For large pipes and profiles, we have an advanced Panchal shredder/granulator with automatic feeding control that assures efficient and sustainable recycling solutions. Get our pipe grinder and recycle plastic pipes and profiles without the least hassles for a cleaner and greener environment.

Description

  • Front side feeding model for small and light pipe and profiles
  • Side tangiable feeding model for large diameter and long size pipe and profiles
  • Specially developed deflector wedge
  • Strong Welded Steel construction
  • D2 Steel Blades/Knives
  • Heavy duty bearings out of cutting chamber
  • Tilt Back Hopper
  • Knives are adjusted outside of the machine
  • Safety interlock

Technology

Pipe Grinder Rotor
Grinder Rotor

Provides full and easy access to the complete interior of the cutting chamber including the granule bin and the screen. This gives unmatched access to both rotating and fixed knives when serviced. And, when you change material and/or colour, you get complete control of the cleaning – Visually clean inspection

Pipe Grinder Front Screen Cradle
Front Screen Cardle

Provides full access to the interior of the cutter house. Cleaning and maintenance with full visibility and accessibility.

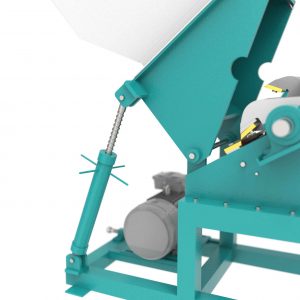

Pipe Grinder Manaul jack
Manual Jack

Provides a secure and efficient opening of the granulator.

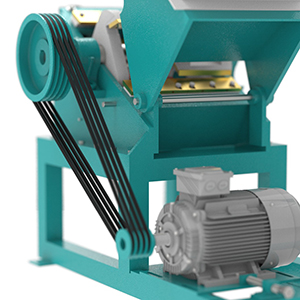

Pipe Grinder V-belt
V Belt Drive

Provides powerful and energy-saving granulation at the same time.

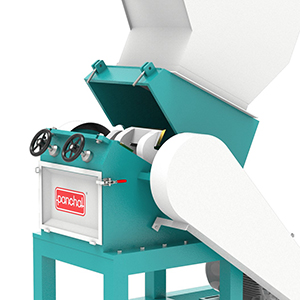

Pipe Grinder Cross Body
Cross Body Opening

Provides full access to the interior of the cutter house. Cleaning and maintenance with full visibility and accessibility.

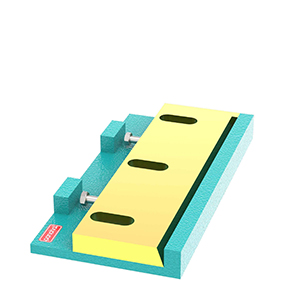

Pipe Grinder Jig Fixture
Jig Fixture

rotor and fixed knives/blades are adjusted outside of the granulator by using jig fixture.

Technical Data

MODEL PPM-60/50GPP PPM-55/70GPP PPM-55/100GPP PPM-70/140GPP
Rotor Diameter (mm) 600 550 550 700
Rotor Width (mm) 500 700 1000 1400
Motor Power (HP) 60 75 100 120
Rotating Blades/Knives 5 5/7 5/7 5/7
Fixed Blades/Knives 2 2 2 2
Screen Size (mm) 8/10/12 8/10/12 8/10/12 8/10/12
Feeding Size (mm) 400x500 300x700 300x1000 300x1400
Weight of M/c (kg) 4000 5000 5000 8000
