Description
Designed for plastics

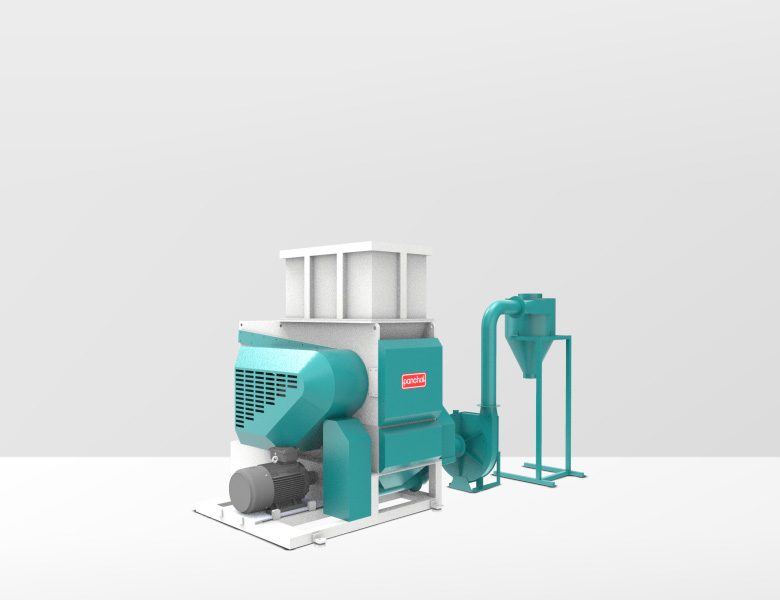

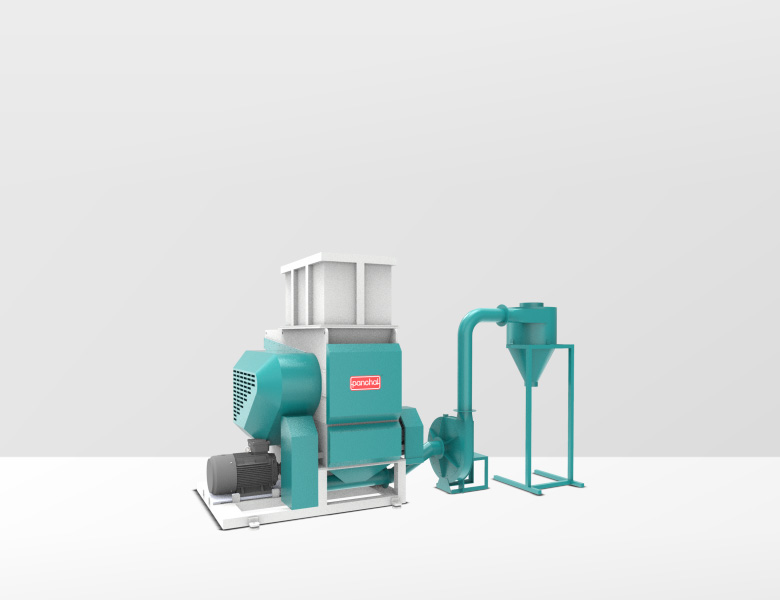

The Single Shaft Shredder has been designed exclusively for efficient recycling of polymer
materials.
Energy saving: A Single Shaft Shredder followed by a grinder/granulator is
a solution that is very energy effective. Compared to a solution with a single large grinder/granulator
for the job, the Single Shaft Shredder in combination with a optimized grinder/granulator do the job much
more effective.

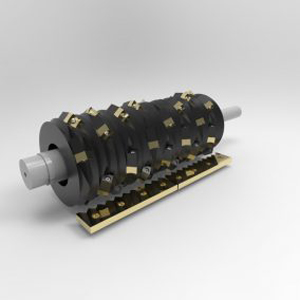

V-CUT cutting technology: The unique V-CUT Technology, is a combination of
V-knife cutting angle, cutting speed and sequential cutting. It provides a best shredding solution for
plastic materials.V-CUT provides a sheer and smooth cut with low stress and therefore requires less motor
power.
Hydraulic PUSHing system: The pneumatic PUSH-system is auto-regulating,
efficiently absorbing vibrations and mechanical stress that occur in tough applications. The special
hopper design allows material to feed directly into the rotor.
Special gear box design: The Single Shaft Shredder design contains no
compromises. Its unique cutting technology together with a Special gearbox requires lower motor power for
the job, minimizing energy consumption.
Easy cleaning/access: The design puts handling in focus. Cleaning the
machine for new materials or colors is easy. Just remove a front side plate, and you have quick access to
the machine’s interior.
Screenless operation: As the material is cut into uniform pieces, the
Single Shaft Shredder operates with & without a screen, although screens can be installed as an option
when smaller chip sizes are required.
Easy maintenance: The front opening makes it possible to access the rotor
of the machine fast and easily. All knives, rotating and fixed are easy accessible. The rotating knives
are reversible and are of cassette type, simplifying maintenance.
