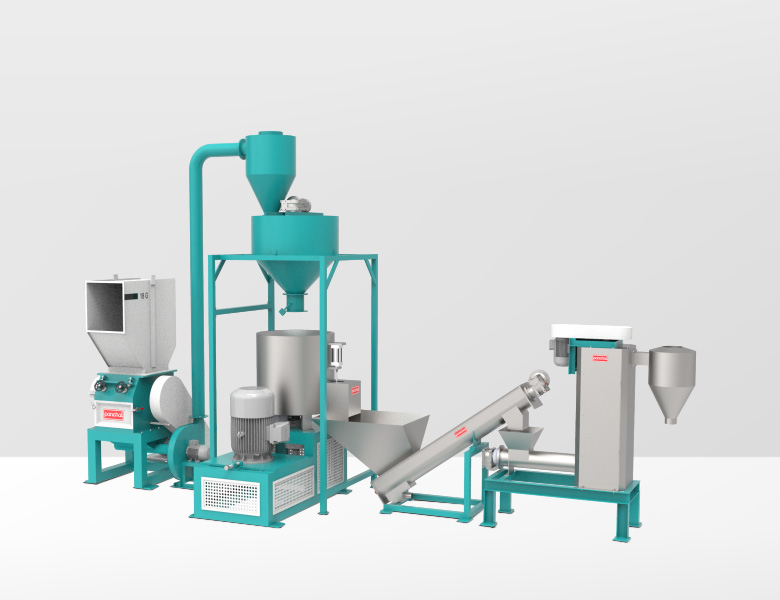

What is the Mini Washing Line (ECO-LINE)?

The Mini Washing Line (ECO-LINE) is an economical plastic recycling solution designed specifically for small entrepreneurs starting their plastic recycling businesses. It provides essential equipment for washing and recycling various plastics including PET, HDPE, LDPE, PP, PVC, and PS in a compact, cost-effective package.

What plastic materials can the ECO-LINE process?

The ECO-LINE can process various plastic materials including PET, HDPE, LDPE, PP, PVC, PS, ABS, PC, and other hard plastic wastes. It's particularly effective for HDPE, PP, PET, ABS, PC, and PS hard plastic materials commonly found in recycling operations.

What are the main components of the Mini Washing Line?

The system includes four main components: Plastic Recycling Washing Machine for grinding, Plastic Scrap Washing and Drying Machine (Turbo Washer) for cleaning, Sink-Float Tank for material separation by density, and Centrifugal Dryer/De-Watering Machine for efficient drying of plastic granules.

What production capacities are available?

We offer three capacity ranges: Mini (300-400 kg/hr), Medium (500-800 kg/hr), and Maxi (1000-1500 kg/hr). Different combinations are available including Grinder-Washing-Sink/float Tank-Dryer (GWSD), Washing-Sink/float Tank-Dryer (WSD), and Washing-Dryer (WD) configurations.

How does the sink-float tank work in plastic separation?

The sink-float tank uses water buoyancy principles to separate different plastic types based on their density. Lighter plastics float while heavier materials sink, enabling efficient separation of plastic types for more effective recycling and material purity.

What are the key features of the ECO-LINE system?

Key features include quick low-cost startup, small footprint for space efficiency, precise grinding capabilities, deep cleaning through high-speed rotation, efficient density-based separation, centrifugal drying technology, and modular design for operational flexibility.

What technology is used in the drying system?

The system uses centrifugal drying technology with AISI304 stainless steel construction. The centrifugal dryer efficiently removes excess water from washed plastics using centrifuge action, ensuring materials are properly dried and ready for further processing or packaging.

Is the system suitable for small business owners?

Yes, the ECO-LINE is specifically designed for smaller businessmen who require low-cost, space-efficient solutions with small footprints. It enables quick startup and operation while maintaining the quality and efficiency needed for commercial plastic recycling operations.

What maintenance features are included?

The system includes cross-body opening technology that provides full access to the interior of the cutter house, enabling easy cleaning and maintenance with full visibility and accessibility for routine upkeep and servicing.

Why choose Panchal Plastic for mini washing lines?

Panchal Plastic offers comprehensive ECO-LINE solutions with modular systems, adjustable washing times, and flexibility to suit various recycling needs. Our machines provide thorough cleansing and preparation of recycled materials while maintaining quality, efficiency, and cost-effectiveness for small to medium-scale recycling operations.

Plastic Recycling Washing Machine Manufacturers in Gujarat, India

Features

Mini Washing Line (ECO-LINE): Quick and Low-Cost Startup: This line is designed for smaller businessmen who will require a low-cost and space-efficient solution with a small footprint for speedy startup and operation.
Wet and Dry Grinder/Granulator: Precise Grinding: from PET, HDPE, LDPE, PP, PVC, PS, etc., provides efficient recycling of hard plastic scrap to be processed into reusable products.
Deep Cleaning: High-speed rotation maximises the extraction of impurities and further enhances the quality and purity of recycled plastic products. Sink-Float Tank:
Separation Efficiency: Our machine uses the buoyancy of water and hence separates different types of plastics depending on their density. This eventually makes it much easier to recycle them. Centrifugal Dryer, De-Watering Machine, or Spin Dryer:
Efficient Drying: The excess water in washed plastics shall be taken out using a centrifuge, which makes sure the materials are ready for further treatment.

Application

Panchal Plastic Machinery's manufacturing range, from the Mini Washing Line (ECO-LINE) to the Wet and Dry Grinder/Granulator, Turbo Washer, Sink-Float Tank, and Centrifugal Dryer, is an important constituent in the recycling industry. The machines are particularly designed to work with HDPE, PP, PET, ABS, PC, and PS hard plastic wastes to provide tailor-made solutions to deal with efficient plastic creation and recycling. From simple, intensive friction turbo-washing to hot-washing for specialised applications, each machine caters to subjecting the recycled materials to the most thorough cleansing and preparation. Modular systems and adjustable washing times allow flexibility in operation, suiting all reasonable recycling needs while maintaining quality and efficiency in performance.

Technology

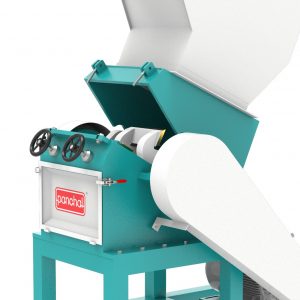

Cross Body Opening

Provides full access to the interior of the cutter house. Cleaning and maintenance with full visibility and accessibility.

Centrifugal Technology

Drying Centrifuges are made of AISI304 stainless steel material.

Technical Data

MODEL	COMBINATION	PRODUCTION /OUTPUT KG/HR*
Eco-Mini-GWSD	Grinder-Turbo Washing-Sink/float Tank-Dryer	300-400
Eco-Mini-WSD	Turbo Washing-Sink/float Tank-Dryer	300-400
Eco-Mini-WD	Turbo Washing--Dryer	250-350
Eco-Medium-GWSD	Grinder-Turbo Washing-Sink/float Tank-Dryer	600-800
Eco-Medium-WSD	Turbo Washing-Sink/float Tank-Dryer	600-800
Eco-Medium-WD	Turbo Washing--Dryer	500-700
Eco-Maxi-GWSD	Grinder-Turbo Washing-Sink/float Tank-Dryer	1200/1500
Eco-Maxi-WSD	Turbo Washing-Sink/float Tank-Dryer	1200/1500
Eco-Maxi-WD	Turbo Washing--Dryer	1000/1200
