What is a Vertical Mixer Silo Screw Type and how does it work?

A Vertical Mixer Silo Screw Type is an industrial mixing equipment featuring a vertical silo with a screw conveyor at the bottom. The machine operates by loading plastic granules into the silo, where the bottom-mounted screw conveyor gently mixes them through a continuous lifting and tumbling action. The mixed materials are then discharged through a bottom valve. This design ensures homogeneous blending of virgin materials with master batches while preventing damage to the granules through gentle handling.

What are the main advantages of the silo screw design over other mixer types?

The silo screw design offers several key advantages: Superior mixing efficiency with high homogeneity, gentle mixing action that prevents material degradation, space-efficient vertical footprint, energy-efficient operation with optimized power consumption, stainless steel construction for durability and contamination prevention, and scalable capacity options from small to large industrial requirements. The design also allows for continuous or batch processing depending on production needs.

What materials can be processed with the Vertical Mixer Silo Screw Type?

This mixer is specifically designed for processing various plastic materials including virgin plastic granules, master batch materials, recycled plastic granules, and compound mixtures. It excels at blending color concentrates with base materials and preparing homogeneous mixtures for extrusion, injection molding, and other plastic manufacturing processes. The gentle screw action makes it suitable for delicate materials that require careful handling to maintain their properties.

What capacity options are available for the Vertical Mixer Silo Screw Type?

We offer a comprehensive range of capacity options to suit various production needs: From smaller models like PPM-100 VSM (200L/120kg) to medium capacity PPM-2000 VSM (3600L/2000kg) and large industrial models like PPM-50000 VSM (50000L/28500kg). This wide range ensures we can provide the perfect solution for small-scale operations, medium production facilities, and large industrial plants with high-volume mixing requirements.

How does the Vertical Mixer Silo Screw Type ensure consistent mixing quality?

Consistent mixing quality is achieved through several design features: The precisely engineered screw design creates a thorough circulating action, the vertical orientation allows gravitational assistance in material distribution, controlled rotation speed ensures repeatable mixing cycles, and the stainless steel construction prevents contamination. The 24-hour programmable timer enables precise control over mixing duration, ensuring consistent results batch after batch.

What industries commonly use Vertical Mixer Silo Screw Type machines?

This mixer serves multiple industries including plastic injection molding, plastic recycling operations, extrusion manufacturing, powder metallurgy, pharmaceutical production, chemical processing, and food industries. It's particularly valuable in applications requiring precise blending of materials before manufacturing processes, where consistent material composition is critical for final product quality and performance.

What maintenance is required for the Vertical Mixer Silo Screw Type?

Maintenance requirements are minimal due to the optimized design. Regular maintenance includes: Periodic inspection of the mixing screw for wear, cleaning of the stainless steel silo between material changes, lubrication of moving parts as specified, checking electrical connections and safety systems, and verification of timer and control functions. The machine is designed for easy access to all components, simplifying maintenance procedures and reducing downtime.

How energy-efficient is the Vertical Mixer Silo Screw Type?

The Vertical Mixer Silo Screw Type is highly energy-efficient, with motor requirements ranging from just 1 HP for smaller models to 50 HP for the largest industrial units. The vertical design and efficient screw action minimize power consumption while maintaining thorough mixing performance. The programmable timer allows for optimized run times, further reducing energy usage. Compared to horizontal alternatives, the vertical configuration typically requires less power to achieve equivalent mixing results.

Can the mixer handle both continuous and batch processing?

Yes, the Vertical Mixer Silo Screw Type is versatile enough to handle both batch processing and continuous operation modes. For batch processing, materials are loaded, mixed for a predetermined time, and then discharged. For continuous operation, the machine can be configured with appropriate feeding and discharge systems to maintain a constant flow of mixed material. The 24-hour timer and control panel provide flexibility in setting up either operational mode based on production requirements.

What safety features are included with the Vertical Mixer Silo Screw Type?

Safety features include: Comprehensive safety interlock system preventing operation when access doors are open, emergency stop buttons at strategic locations, overload protection for the motor, properly grounded electrical systems, secure guarding of moving parts, and clear safety indicators on the control panel. These features ensure operator safety during all phases of operation, loading, maintenance, and material discharge procedures.

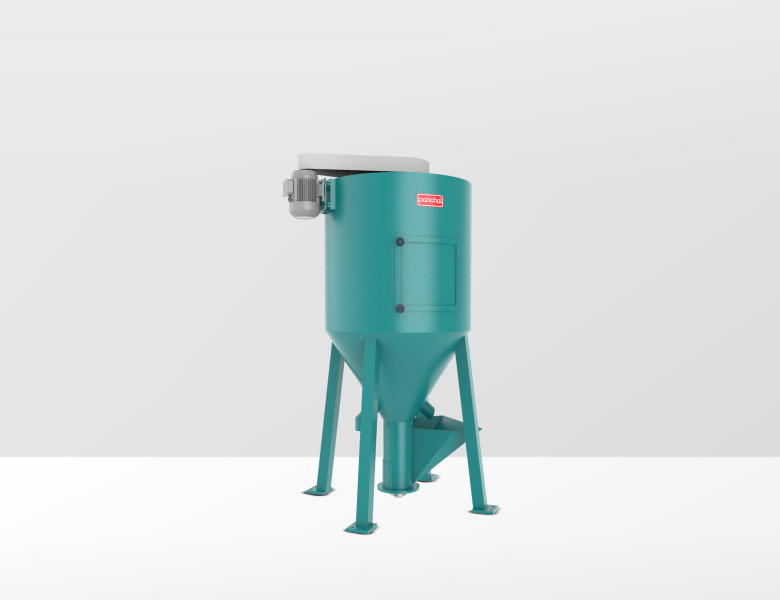

Vertical Plastic Mixer Silo Screw Type

Features

Stainless Steel Mixer Barrel: The mixer barrel is made of stainless steel, which makes the mixer very strong and not easily affected by rust. This makes the contents safe and also ensures that the mixer has a longer life expectancy.
Safety Security System: This mixer has a safety feature that will protect the operators from being harmed while using the machine. It helps to make sure that the machine is functioning well and there is no mishap.
High Performance with Low Energy Consumption: As for the mixer, I have observed that it is quite effective in combining the different types of plastics and other materials. This it does in a very effective manner, that is, it uses less energy, which is very useful in conserving electricity.
24-Hour Timer: This timer is particularly important in ascertaining the duration of time the mixer has been running. It also has the option of stopping the machine once it is done with the mixing process, saving energy and overworking the machine.
Optimised Configuration for Easy Use and Maintenance: The mixer is quite simple and is designed to be operated in a conventional way. It is convenient to use and control, and it is also convenient to clean and does not require much care. In this way, there is no disruption to the flow of work, and the workers can use the machine without any difficulty.

Description

Specially designed for mixing Virgin + Master batch for homogenizes mixing for better processing extruder for better performance of color. Special tools design as per application.

Application

A vertical mixer silo screw type has been special in efficiently mixing virgin materials and master batches in order to carry homogeneous blends that are so important for enriched extrusion processing and colour performance. That means it's a kind of mixer that is used in various industries dealing with bulk plastic granules to fulfil the mixing process. The vertical silo and bottom screw conveyor ensure thorough mixing as the granules are gravity-fed into the silo and combined uniformly by the screw conveyor. Mixed granules are then discharged through a valve at the bottom, ready for further processing. The vertical batch mixer silo screw type is characterised by very high mixing efficiency, a gentle treatment to prevent damage to material properties, and a design adapted to various industrial applications. It is the finest solution to reliability for those seeking solutions with regard to effective material blending processes in their production.

Technology

Mixing Screw

Control Panel

Technical Data

MODEL	CAP. IN LITERS	CAP. IN KG	MOTOR HP
PPM-100 VSM	200 L	120 KG	1 HP
PPM-200 VSM	250 L	200 KG	3 HP
PPM-500 VSM	850 L	500 KG	4 HP
PPM-1000 VSM	1650 L	1000 KG	5 HP
PPM-1500 VSM	2450 L	1500 KG	7.5 HP
PPM-2000 VSM	3600 L	2000 KG	10 HP
PPM-5000 VSM	5000 L	3000 KG	15 HP
PPM-8000 VSM	8000 L	5000 KG	15 HP
PPM-10000 VSM	10000 L	6000 KG	15 HP
PPM-12000 VSM	12000 L	7200 KG	20 HP
PPM-15000 VSM	15000 L	9000 KG	20 HP
PPM-16500 VSM	16500 L	10000 KG	20 HP
PPM-20000 VSM	20000 L	12000 KG	20 HP
PPM-28000 VSM	28000 L	17000 KG	30 HP
PPM-40000 VSM	40000 L	24000 KG	40 HP
PPM-50000 VSM	50000 L	28500 KG	50 HP

Die Face Cutter Water

Shredder Feeder Extruder

Extruder With Strand Pelletizer

Mother Baby Extruder

Trim Recycling Plant

Force Feeder Extruder

Extruder With Die-Face-Water Ring

Extruder With Die-Face-Air Cooling

Cutter Compactor Plastic Recycling Machine

Pelletizer

Single Shaft Shredder

Double / Four Shaft Shredder

Agglomerator A-Series

Agglomerator D-Series

Injection Series

Injection Low Speed Series

Blow Molding Series

Pipe And Profile Series

Thermoforming Series

Film / Sheet Series

PET-Bottle Grinder

Lumps Grinder

Fibre Cutter Series

Mini Washing line (ECO-LINE)

HDPE/PP Washing Line

LDPE Film Washing Line

PP Raffia Bag Washing Line

PET Washing Line

Washing Equipments

Equipment of PET Washing Line

High Speed Mixer

Tumbler Mixer

Vertical Mixer

Horizontal Mixer

Vertical Mixer Silo Screw type

Vertical Mixer Screw Portable type

PET Recycling Plant

Mixed Waste Recycling

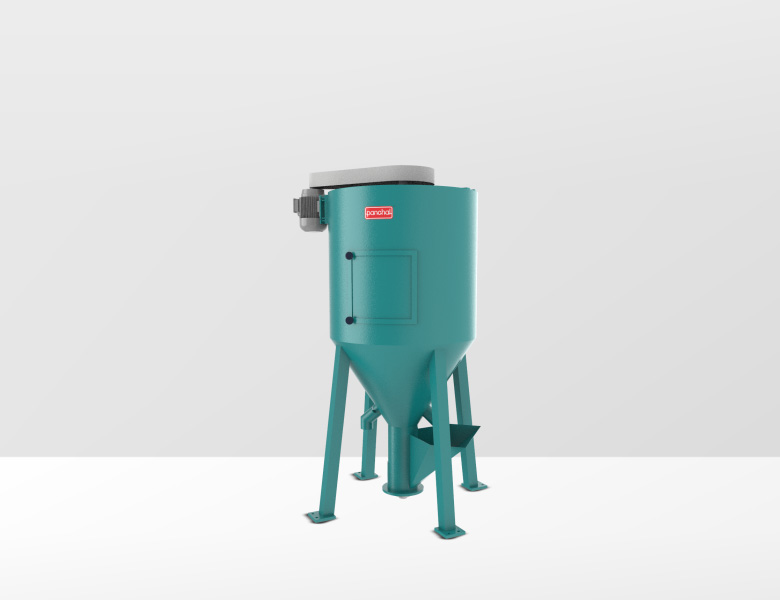

Vertical Mixer Silo Screw Type
