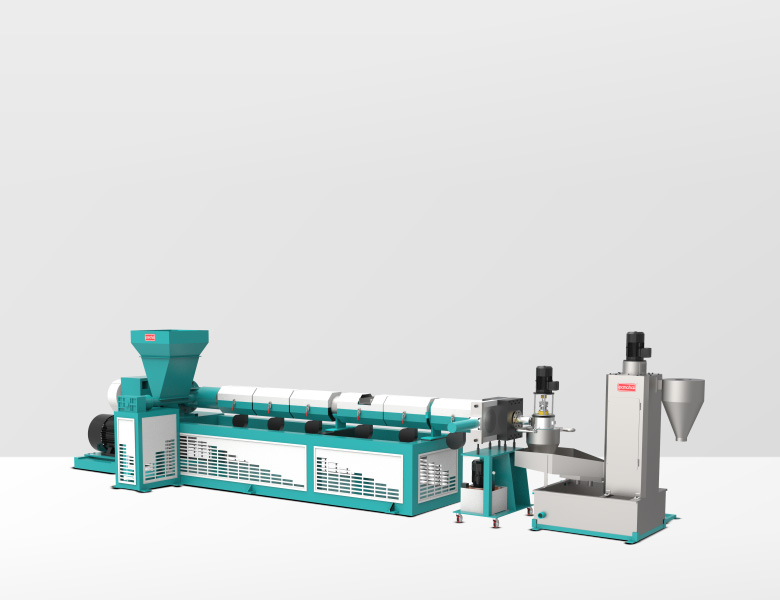

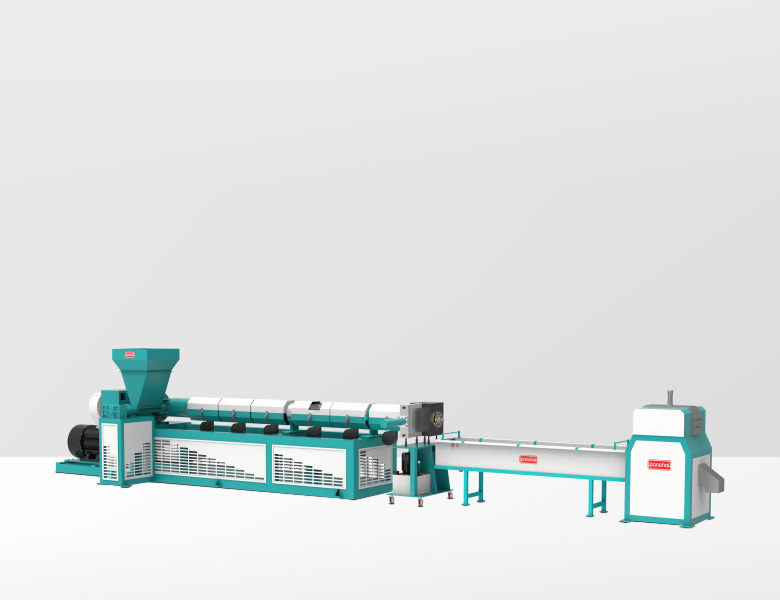

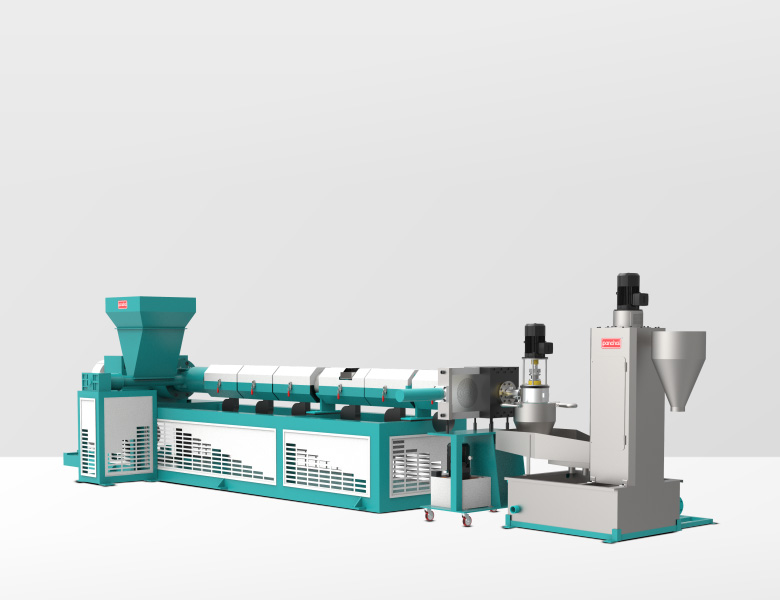

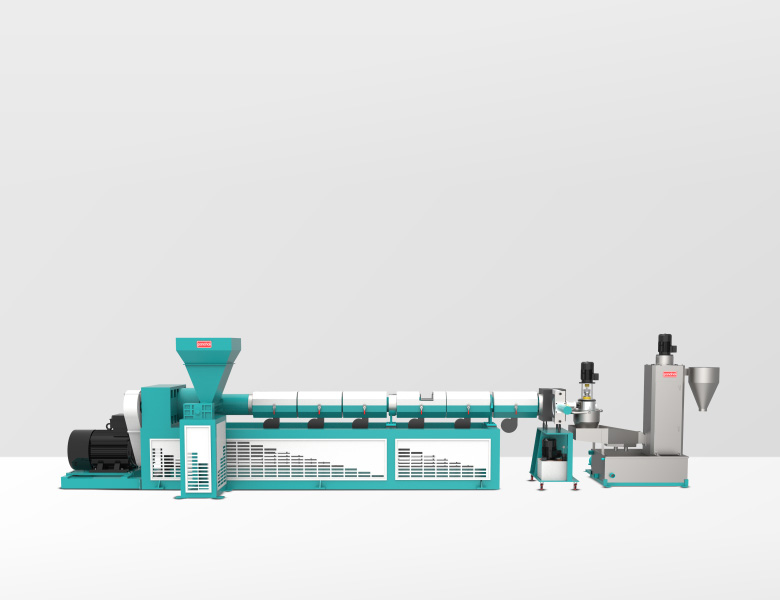

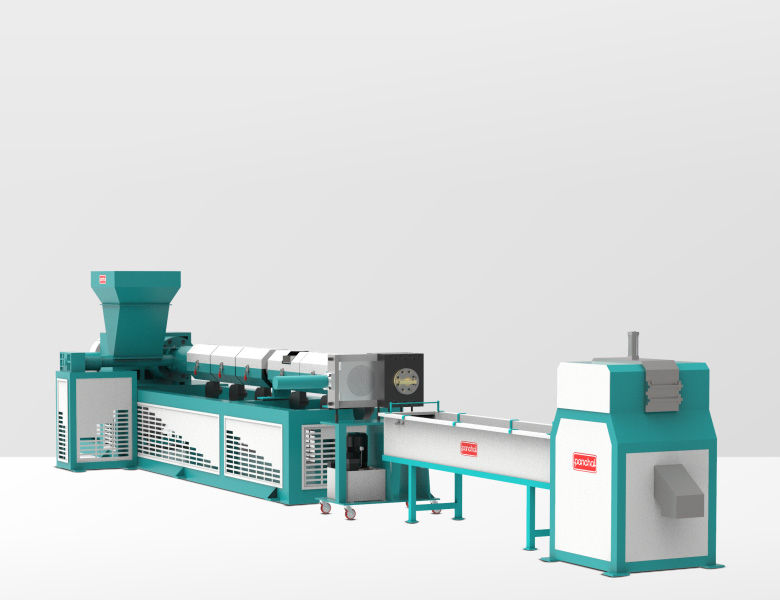

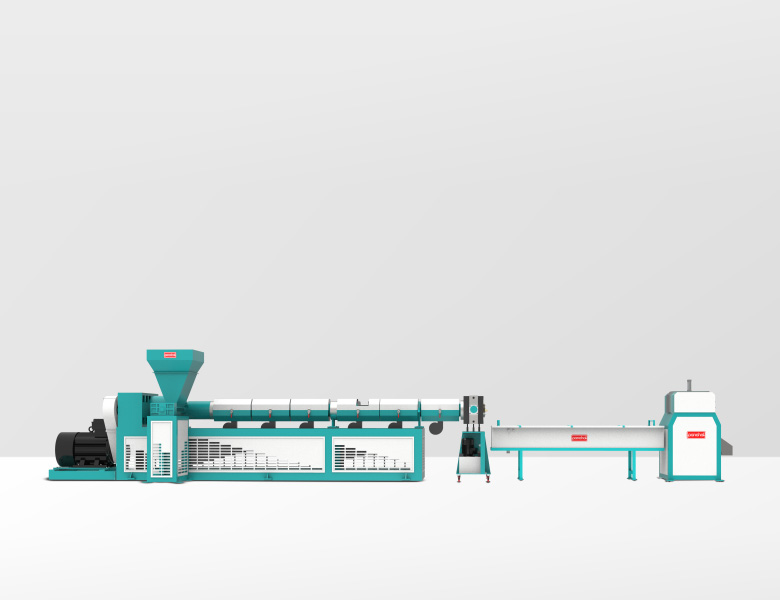

Force Feeder Extruder

Extruder-Force-Feeder

Introducing our innovative screw feeder machine, a versatile solution for plastic material recycling. This advanced system functions as a high-performance force feeder extruder, designed to process a wide range of plastic materials including LLDPE, LDPE, HM, HDPE, PP, HIPS, PC, BOPP, OPP, and PS. Our plastic extruder with force feeder ensures consistent feeding of lightweight and irregular plastic scrap into the extrusion process. With a vented die for enhanced cooling and efficiency, along with a precision die face cutter, it efficiently converts edge trim, film, and various plastic waste into premium-grade granules.

This force feeder extruder, equipped with a flexible screw feeder, delivers reliability and efficiency, helping manufacturers minimize plastic waste and improve recycling productivity. The plastic extruder with force feeder is designed for easy operation and low maintenance, making it a valuable asset for modern plastic recycling plants. Whether you require precise granulation or enhanced recycling capability, this screw feeder-based extrusion system provides a dependable and efficient solution.

Download Catalogue Inquiry Now

Details of Force Feeder Extruder

Features
  • Force-Feeder System: A force-feed system with which we can efficiently and comprehensively process both soft and hard materials is provided.
  • Vented Extruder: Include a vented extruder that removes the volatile substances and water from the granules, and thus, the recycled products will have high quality.
  • Die-Face Cutter: 3-in-1 system, which includes an air and water cutter die-face as well as built-in cooling of recycled materials for exact cuts.
  • Control Panel with Advanced Technology: It includes a sophisticated control panel, allowing for effortless operation and overseeing of the recycling process.
  • Possible Granule Size Adjustment: It enables the setting of granule size, resulting in perfect granules resembling virgin ones.
  • Hydraulic Screen Changer: The screen changer is hydraulically powered and has a unique design for continuous operation and easy maintenance.
  • Melt Pressure Transducer: Applies a melt pressure transducer for effective tracking and regulation of melt pressure during the whole recycling process.
Application
  • This machine is designed for the plasticizing and recycling process of a lot of materials, such as LLDPE, LDPE, HM, HDPE, PP, HIPS, PC, BOPP, OPP, PS, EPS, ABS, etc. The system's production capacity ranges from 50kg per hour to 1000 kg/hr and is equipped with a forced feeder system and a vented extruder, as well as a water cooling system for the die-face cutter for efficient recycling of various plastic materials such as films, sheets, and ground plastics. It is applicable to recycling diverse forms of materials, including film/rolls, monofilament, sheets, carpeting, powder, foam, raffia, and textiles.

Description

Form of Material
  • Grind – Film waste, trims from cast film production
  • Grind – Raffia tape, bags etc
  • Grind – Yarn & filament
  • Grind – Washing film, fiber, yarn, tape etc
    • Technical Benefits
    • Force-Feeder with Silo for stocking fluffy and rigid material
    • Vented Extruder for removing the volatile and Moisture from Granules
    • Possible to change the size of granules and Perfect granules (virgin type)
    • Melt Pressure Transducer
    • Hydraulic screen changer
    • Die-Face Cutter (Air & Water type) System
    • Control Panel with advance technology

Technology

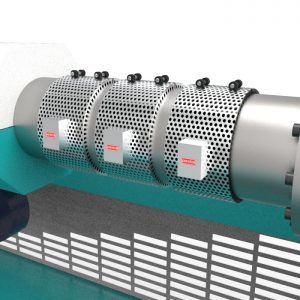

Force feeder extruder ceramic heating
Ceramic Heating

Power saving ceramic heater and long life.

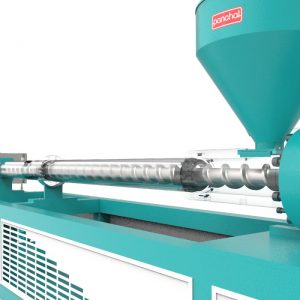

Force feeder extruder Screw
Extruder Screw

Screw made of EN41B nitride steel duly gas nitride.

Force feeder extruder Gearbox
Gearbox

Heavy duty helical gearbox with oil lubrication and water cooling for oil.

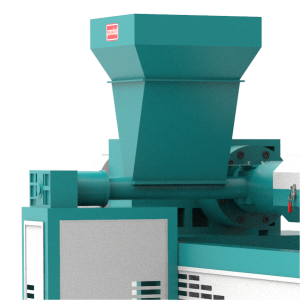

Force feeder extruder
Extruder force feeder device

Technical Data

MODEL PPM-65FFE PPM-75FFE PPM-90FFE PPM-100FFE PPM-120FFE PPM-150FFE
Force feeder (mm) 80 105 105 125 150 180
FF Motor Power (kW) 3 5 5 5 5 7.5
Screw Diameter (mm) 65 75 90 100 120 150
L/D Ratio 35:1 35:1 35:1 35:1 35:1 35:1
Heating Load (kW) 20 30 35 45 55 80
Main Motor (kW) 30 37.5 45 55 75 90
Screen Changer (mm) 100 150 180 200 250 300
Dia Face Drive (kW) 1.1 1.1 1.1 1.1 1.1 1.1
Water Pump (kW) 2 2 2 2 2 2
Spin Dryer (kW) 3 3 3 3 5 5
Production (kg/Hr.) 70-120 100-150 150-200 250-300 350-450 650-800
Total Power (kW) 65 85 98 120 155 195
