Friction Washer

Grinder-Injection-Series01

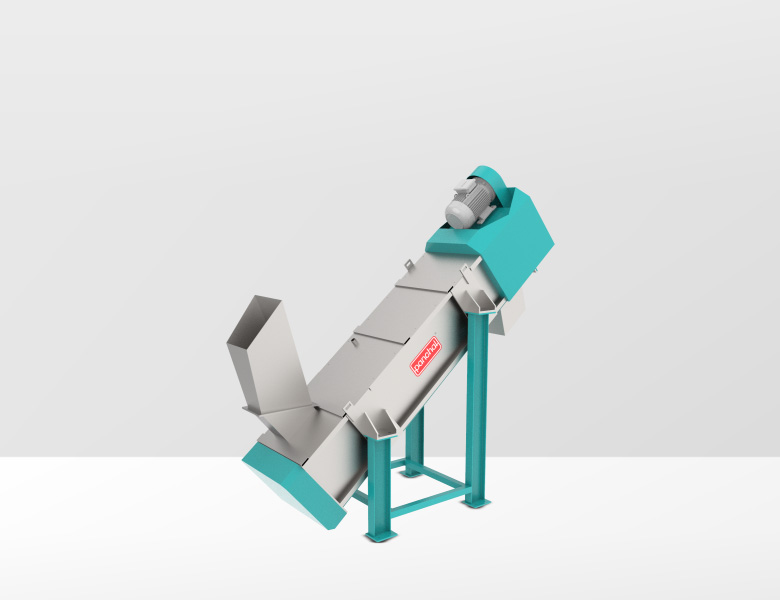

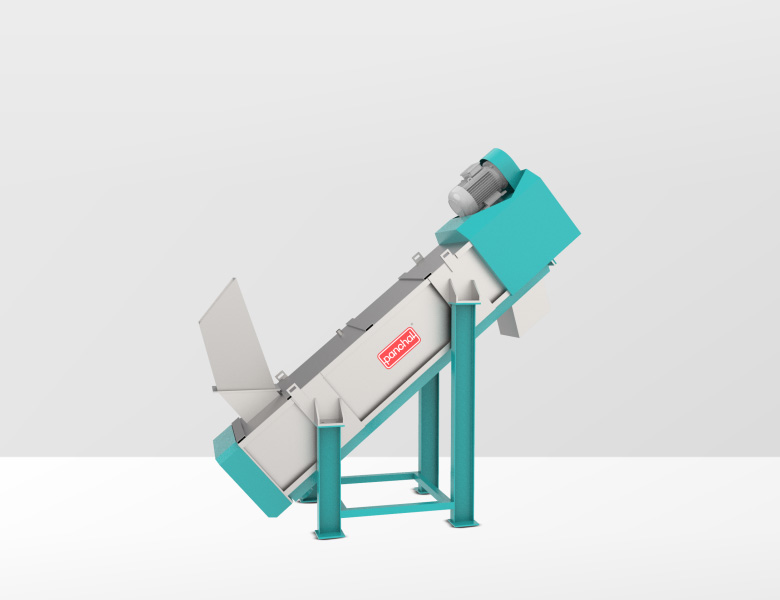

Friction washer plastic recycling systems, commonly known as friction washers or high speed friction washers, are critical equipment used to clean and remove water from plastic materials, including film flakes and granules. A friction washing machine operates using an inclined high-speed screw that aggressively washes the material to eliminate unwanted contaminants such as dirt, oil, and residues.

The friction washer plastic cleaning process ensures that fines and water are effectively separated from the ground material through a stainless-steel screen. Raw materials are fed into the machine at the base and discharged from the top outlet after undergoing a rigorous cleaning process, making them suitable for further recycling stages.

One of the key advantages of a high speed friction washer is its efficiency in removing stubborn contaminants while requiring minimal maintenance. This makes the friction washer plastic recycling machine an ideal solution for businesses aiming to reduce operational costs and improve output quality. These machines are equipped with advanced features such as anti-wear steel blades, dynamically balanced rotors, and isolated bearing blocks, ensuring durability, stability, and long service life even in demanding recycling environments.

Details of Friction Washer

Friction washers are mainly used in the washing of plastic film and plastic flakes after shredding in the recycling chain.
They are essential for:

  • Washing of the plastic materials to remove undesirable substances like dirt and oils to obtain good-quality recycled products.
  • Removing water from the surface of the plastic flakes and granules to improve the purity of the material and the efficiency of subsequent processing.
  • Enhancing the efficiency of downstream equipment by providing clean and pre-conditioned materials for the subsequent stages of recycling.
  • Especially for facilities that are committed to sustainable practices, friction washers are a very important component of environmental initiatives as they help to reuse plastics. They allow businesses to participate in the circular economy by providing quality recycled plastics to meet quality standards for use in the packaging and manufacturing industries.
  • Discover the possibilities of our state-of-the-art friction washers today and experience a boost in your plastic recycling operations while being sustainable.

Features
  • Dynamic ballance Rotor for sturdy performance.
  • Drum Side wall with Pocket screen increase the drying and cleaning efficeincy.
  • Heavy duty welded machine steel construction.
  • Isolated bearing housing to keep away water to reach to the bearing.
  • Replacable Rotor.
  • Effective high friction washing.
  • Less Water Consumption.
  • Batch Process.

Technology

Friction washer
Screen Basket

Technical Data

MODEL PPM-40-150FW PPM-40-230FW PPM-70-250FW PPM-70-450FW
Main motor power (KW) 11 22 30 37
Rotor diameter (mm) 350 350 650 650
Type Incline Incline Incline Incline
Production Film (kg/hr) 300 700 1200 1500
Production Flake (kg/hr) 800 2000 3000 4000
