The plastic horizontal dryer, also known as a horizontal dryer or
horizontal drying machine, is a high-speed moisture removal system designed for
PET, HDPE, LDPE, PP, and other plastic materials processed in washing lines.

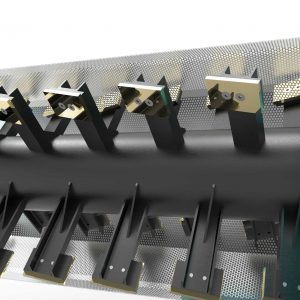

This advanced horizontal dryer uses a powerful horizontal rotor combined with a
perforated stainless-steel drying chamber to efficiently remove surface water from
plastic flakes, film scraps, regrinds, and rigid materials.
Its continuous centrifugal action ensures highly effective drying, allowing the
plastic horizontal dryer to reduce moisture levels to meet the precise requirements
of downstream equipment such as air dryers, thermal dryers, extruders, or pelletizing machines.
Engineered with a heavy-duty balanced rotor, vibration-free housing, and wear-resistant components,
this horizontal drying machine guarantees stable performance even under high-load, continuous operations.
The optimized airflow system improves drying efficiency while maintaining low energy consumption.
Additional features include easy-access maintenance covers, quick-clean design, safety interlocks,
adjustable feed control, and a robust mounting structure. Ideal for high-capacity recycling plants,
the plastic horizontal dryer ensures clean, low-moisture plastic flakes
that significantly enhance extruder output quality and overall washing line productivity.
Drying Capabilities: LDPE or PP Film: Substantially decreases the remaining humidity from 40–50% to 4–5%. Rigid materials like HDPE or PP bring the humidity level down to as low as 1-2%. Mechanical Drying Advantages: Favors mechanical drying over thermal techniques in order to save energy. It prohibits the compromise of drying efficiency while at the same time adhering to environmental conservation standards. Features: Dynamic Balanced Rotor: Delivers solid and dependable performance. Polygonal Screen Basket: Improves drying and cleaning speed. Heavy-Duty Welded Machine Steel Construction: This promotes the product to be long-lasting and to have a long lifespan. Outside Mounted Pillow Block Bearing: Prevents the bearings from coming into contact with water, hence increasing their functionality. Replaceable Rotor Paddle: It provides easy access for maintenance and also increases the lifespan of the machines. Effective Dry Cleaning: effectively dries without the use of water, thus conserving resources to the maximum.
| MODEL | PPM-50/150HD | PPM-90/150HD | PPM-120/200HD | PPM-150/350HD | PPM-200/440HD |
|---|---|---|---|---|---|
| ROTOR DIAMETER (MM) | 500 | 900 | 1200 | 1500 | 2000 |
| ROTATING LENGTH (MM) | 1200 | 1500 | 2000 | 3500 | 4400 |
| MOTOR (HP) | 20/40 | 50/100 | 75/150 | 150/175 | 200/270 |
| LDPE FILM (KG/HR) | 150-200 | 400-500 | 600-800 | 1200-1500 | 1500-2500 |
| HDPE/PP REGRIND (KG/HR) | 800-1000 | 100-1500 | 1800-2000 | 2500-3000 | 6000-8000 |
| PET FLAKES (KG/HR) | 1000-1500 | 1500-2000 | 2200-2500 | 2500-3000 | 8000-10000 |
