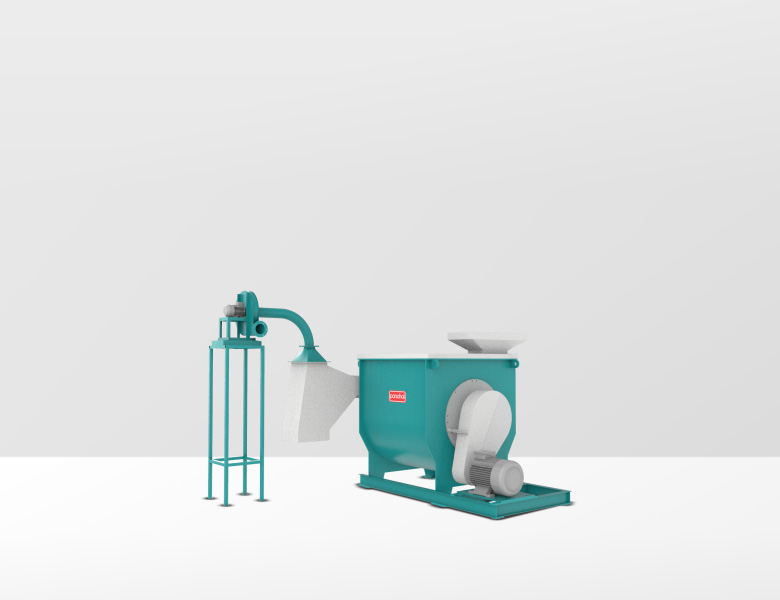

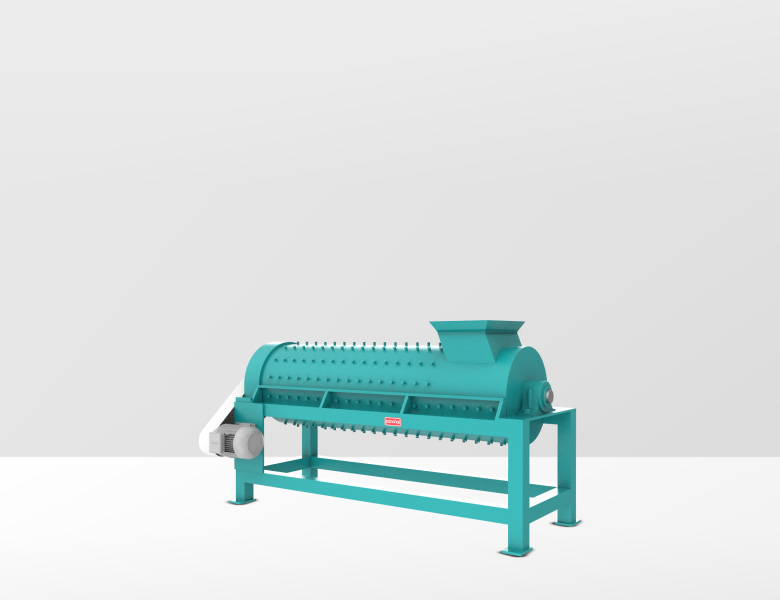

Label Stripper / Scraper

Grinder-Injection-Series01

The Panchal Plastic pet bottle label remover machine, also known as a bottle label remover machine or plastic bottle label remover, is the ideal solution for efficient and effective removal of labels from ground PET bottles. This advanced pet bottle label remover is designed to remove labels quickly and easily without damaging the PET material underneath.

This pet bottle label remover machine is highly customizable to meet specific customer requirements. Its capacity can be adjusted to match the output of the PET grinding process, and it can be equipped with various components such as different blades, screens, and conveyors to enhance performance.

The Panchal Plastic bottle label remover machine is the perfect solution for PET recycling companies looking for reliable and efficient plastic bottle label remover systems. It ensures consistent performance, high efficiency, and flexibility to suit diverse recycling operations.

Download Catalogue Inquiry Now

Details of Label Stripper/Scraper

The Panchal Plastic Label Stripper/Scraper has been developed for PET recycling companies that require stripping the labels from ground PET bottles. It has a significant application in the recycling process to remove labels and external dirt in the recycling of PET material from beverage bottles.

Key applications include:
  • PET Recycling: Strip and peel off the labels and sleeves from the ground PET bottles, improving the quality of recycled PET.
  • Label and Dirt Removal: Cleans labels and external dirt mechanically by rubbing them against cutting edges on a rotary drum and stationary parts of an exchangeable jacket.
  • Customizable Stator Elements: flexible to fit different sizes of bottles and accurate in the removal of labels while being operationally versatile.
Features
  • Customizable Capacity: Flexible production rate of the machines to match the production of PET grinding processes to meet certain customer demands.
  • Variety of Configurations: May be fitted with various kinds of blades, screens, and conveyors depending on the customer requirements for label stripping.
  • Temperature Monitoring: Comes with an integrated thermal sensor for monitoring temperature throughout the operation of the device for efficiency and safety.
  • Efficient Label Removal: This guarantees that labels and dirt are effectively removed from bottles, which is important for the production of recycled PET.
  • Durable Construction: Constructed with sturdy and durable parts for extended use in factories and other similar establishments.
  • User-Friendly Design: Easy to operate and maintain, thus making it easy to incorporate into PET recycling applications.

    • The Panchal Plastic Label Stripper/Scraper is an efficient and adaptable product that can meet the requirements of PET recycling for each client.

Description

The Label Scraper is suitable to remove labels and sleeves of all the kinds as well as external drit from beverages bottles comes from all post consumer area.

The label scraper removes labels and exernal dirt fro the beverages bottles by mechncical firiction between cutting elements on a rotating durm and fixed elements in exchangeable housing component.

The Stator elements can be pre-adjuested from different bottle sizes and cabe adujst if necessary.

In this section a thermal sensor has been installed constantly measuring the temperature.

The crushed labels and the removed dirt are discharged off the machine together with the bottles and are separated from the material stream over a further process.

Technology

Plastic label remover

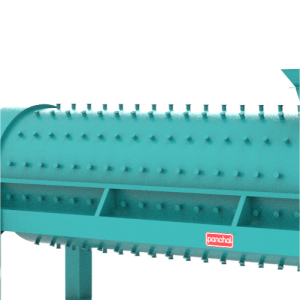

Label Scrapper Carbide Tips
Plastic label remover

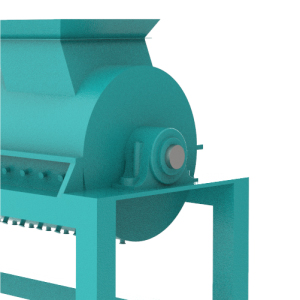

Label Scrapper Bearing

Technical Data

MODEL LR600 LR800 LR1000
Capacity(kg/h) 600 kg/hr 3000 kg/hr 4000 kg/hr
Power(kW) 11 30 30
Dimensions(mm) 3200*1980*1895 3300*1462*2258 4550*1850*2075
% > 95 > 95 > 95
Bottle Broken Rate(%) < = 5 < = 5 < = 5
