What is a Zig Zag Separator Machine and how does it work?

A Zig Zag Separator Machine is an air classification system that uses a multi-chamber zig zag design to separate lightweight materials like labels and paper from plastic flakes. It works by creating controlled air currents that carry lighter contaminants upward while allowing heavier plastic flakes to fall through the chambers, effectively separating materials based on their density and aerodynamic properties.

What types of plastic materials can the Zig Zag Separator process?

The Zig Zag Separator is designed to process various plastic materials including PET, HDPE, ABS, PC, and HIPS bottle flakes. It effectively removes labels, paper contaminants, films, and dust particles from these materials, making it versatile for different plastic recycling applications.

What is the capacity range of your Zig Zag Separator models?

We offer multiple models with different capacities. The ZZ-7.5 model handles 300-1500 kg/hr, while the ZZ-11 model processes 2000-3000 kg/hr. The specific capacity depends on the material type, contamination level, and desired output quality.

How does the Zig Zag Separator improve recycling efficiency?

The Zig Zag Separator significantly improves recycling efficiency by automatically removing labels and paper contaminants, reducing manual sorting labor. It enhances material purity, increases throughput, and ensures consistent quality of recycled plastics, ultimately improving the overall economics of the recycling operation.

What maintenance is required for the Zig Zag Separator?

Regular maintenance includes cleaning dust bags, inspecting and cleaning the zig zag chambers, checking blower performance, and ensuring all electrical connections are secure. The machine is designed for minimal maintenance with easy access to key components for cleaning and inspection.

Can the machine handle wet or moist plastic flakes?

The Zig Zag Separator is primarily designed for dry material processing. For optimal performance, plastic flakes should be properly dried before processing. Wet or moist materials can affect separation efficiency and may require additional drying equipment in the recycling line.

What power requirements does the Zig Zag Separator have?

Power requirements vary by model. The ZZ-7.5 requires 4KW for label suction and 7.5KW for flake collection, while the ZZ-11 requires 3KW+3KW for label suction and 11KW for flake collection. All models operate on standard industrial power supply.

How does the cross-flow sifting system work?

The cross-flow sifting system uses horizontal air currents to separate granular and small-sized plastic particles. As materials move through the zig zag chambers, the cross-flow air carries lighter particles away while allowing properly sized plastic flakes to continue through the system, ensuring precise separation and high-quality output.

What is the typical installation time for this equipment?

Installation typically takes 2-3 days with proper site preparation. This includes positioning the machine, connecting power supplies, setting up the air flow system, and conducting initial testing. Our technical team provides installation support and operator training to ensure optimal performance.

Do you provide customization for specific recycling needs?

Yes, we offer customized solutions tailored to specific production requirements, material types, and facility layouts. Our engineering team can modify capacity, chamber design, and air flow parameters to optimize performance for your particular recycling application.

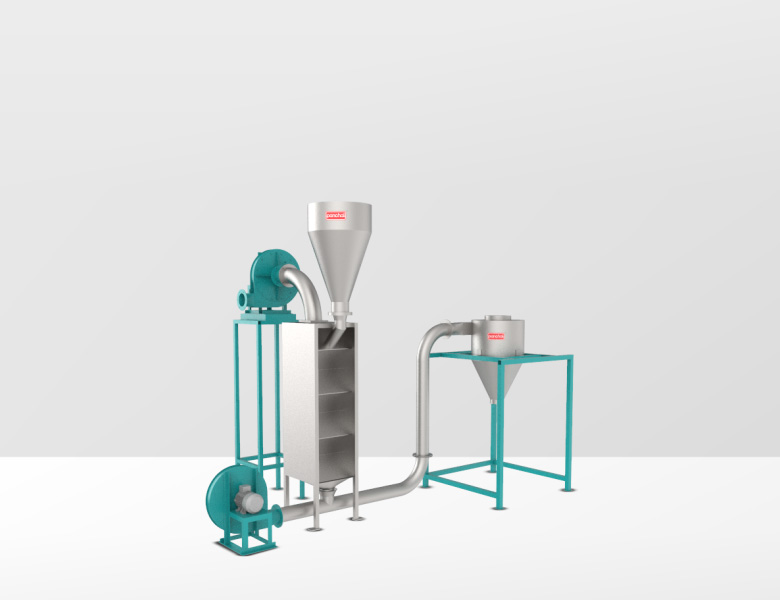

Zig Zag Separator Machine in Gujarat

The Zig Zag Label Classifier is very important in the process of sorting to ensure that labels and papers are stripped off the ground PET, HDPE, ABS, PC/HIPS bottle flakes. It is designed based on the production rate in kilograms per hour (kg/hr).

This classifier is utilized in two distinct processes:This classifier is utilized in two distinct processes:

Separation after Hot Air Drying: After the hot air-drying process, it separates the films and paper from the dried material and provides clean, label-free plastic flakes for further processing.
Fines and Dust Separation: It has the very important function of filtering out fine and dust particles from the final product to give it a better quality.
Also, the Zig Zag Label Classifier uses a cross-flow sifting system that separates the granular and small-sized plastic particles for better material quality and functionality.

Features

Zig Zag Construction: Equipped with a multichambered system, which is ideal for providing the best separation possible.
Tailored Design: Depending on the set production demands, it is designed to provide the best results in terms of throughput (kg/hr).
Effective Label and Paper Removal: Designed for label and paper release from PET, HDPE, ABS, PC, and HIPS bottle flake applications.
Cross-Flow Sifting:Helps in the accurate segregation of granular and small-sized plastic particles, hence increasing the quality of the material.
Versatile Application: Applicable to most plastic recycling processes to provide clean and high-quality recycled plastics.
Enhanced Material Handling: Enhances the quality of the recycled plastics since the process eliminates the contamination of the plastics by other materials.

The Zig Zag Label Classifier is a vital tool in the process of recycling plastics, as it helps in the removal of labels and paper and, at the same time, improves the quality of the recycled plastics.

Description

ZZ Label Classifier is used for 2 diffrient process

1st- Separation of films and paper after Hot AIR Drying process.
2nd- Separation of fines and dust from the end product.
Separation of granular and small sized plastic particles by means of cross flow sifting
Zig Zag construction with multichamber system for maximum results

Technology

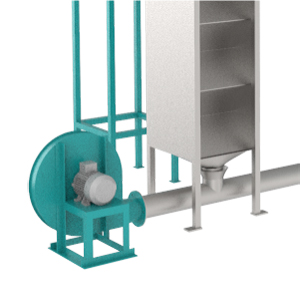

Label Classifier Zig Zak

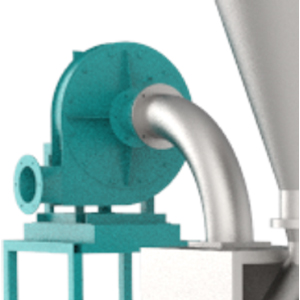

Label Classifier Suction Blower

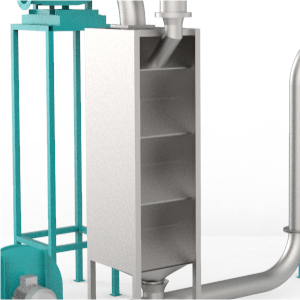

Conveying blower

Technical Data

MODEL	ZZ-7.5	ZZ-11
Capacity(kg/h)	300-1500 kg/hr	2000-3000 kg/hr
Blower power for sucking labels	4KW	3KW+3KW
Blower power for collecting flakes	7.5KW	11KW
Dust bag for collecting labels	4pcs	4+4pcs
